6700Visible Split Beam Spectrophotometer (4nm SBW)/6700B0

• Colour touch screen display
• High quality, sealed split beam optics for optimum photometric performance
• Secure multi-user operation
• Save to SD memory cards
• Enhanced productivity
• Extensive range of accessories for flexibility and improve productivity

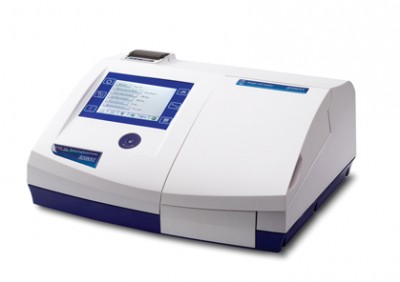

Model 6700 covers the visible range of the spectrum and has a 4nm bandwidth. All three instruments in the 67 range have modes for photometrics, spectrum scanning, multi-wavelength analysis, kinetics and quantitation, giving direct concentration results against single or multi-point calibrations. With extensive post measurement tools to ensure results are presented exactly to each users requirements the 67 series spectrophotometers also offer significant advances in data portability.

 The 6700 visible scanning spectrophotometer is fitted with a single 10 x 10mm cuvette holder and is supplied with 2GB of internal memory, 2GB SD memory card, 100 disposable cuvettes, instruction manual, power cable and PC software on CD ROM with interface cable.

Full product specification.

Parameter	6700, 6705 and 6715
Wavelength range	320 to 1100nm (6700), 190 to 1100nm (6705, 6715)
Wavelength resolution	0.1nm
Wavelength accuracy	± 1.0nm
Wavelength repeatability	± 0.2nm
Spectral bandwidth	4nm (6700, 6705), 1.5nm (6715)
Transmittance	0 to 199.9%T
Absorbance	- 0.300 to 3.000A
Accuracy	± 0.005A at 1.0A
Resolution	0.1%T, 0.001A
Stability	<0.001A/h after warm-up
Quantitation range	- 99999 to +99999
Quantitation resolution	Selectable 1, 0.1, 0.01 or 0.001
Calibration	Up to 20 standards with 5 replicates of each
Units	mEq/l, ppm, mg/l, g/l, %, µg/ml, mg/ml, g/dl, mg/dl, µg/l, ng/l, µg/dl, M, mM, µM, U/l, mU/l, U/ml, blank
Curve fit algorithms	Linear, quadratic and cubic functions
Multi-wavelength	Up to 4 wavelengths
Calculations	Ratio, difference, formulae with factors
Kinetics time limits	0 to 9999 seconds
Calibration	Standard or factor
Analysis	Curve details with mean rate of change plus formula of line of best fit
Spectrum range	Any range between 320 (6700) or 190 (6705, 6715) and 1100nm
Scan speed	1500nm/min
Scan interval	0.1nm
Analysis	Auto peaks and valleys, zoom, addition, subtraction, peak ratios, smoothing, area under curve, wavelength table, derivatives, analysis points, overlay
Light source	Tungsten halogen lamp (6700), Xenon lamp (6705, 6715)
Configuration	Secure multi-user and free access
Number of users	10 users + supervisor
Methods/results memory	>500 on internal flash memory or removable media
Removable media	SD memory card
Outputs	USB, Centronics, Analogue
Size (w x d x h)	490 x 390 x 220mm
Weight	7.5kg
