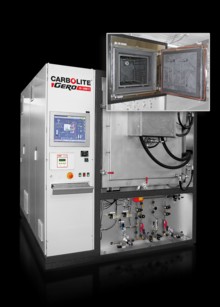

کوره مدل HTK 25 GR/22-1G ساخت کمپانی Carbolite
HTK 25 GR/22-1
Insulation material Graphite
Volume (l) 25
Tmax vacuum (°C) 2200
Dimensions:
External H x W x D (mm) 2200 x 1900 x 1800
Transport weight (kg) 1700
Usable space
H x W x D, usable space without retort (mm) 250 x 250 x 400
H x W x D, usable space with retort (mm) 230 x 230 x 400
Thermal values
Tmax atmospheric pressure (°C) 2200
ΔT , between 500 and 1500°C (K) according to DIN 17052 ± 10
Max. heat-up rate (K/min) 10
Cooling time (h) 6
Connecting values
Power (kW) 60
Voltage (V) 400 (3P)
Current (A) 3 x 90
Series fuse (A) 3 x 125
Vacuum (option)
Leakage rate - clean, cold and empty (mbar l/s) 5x10-3
Vacuum range depending on the pumping unit rough or fine vacuum
Cooling water required
Flow (l/min) 70
Max. inlet temperature (°C) 23
Gas supply
Nitrogen or Argon flow, others on request (l/h) 200-2000
Controller on request
