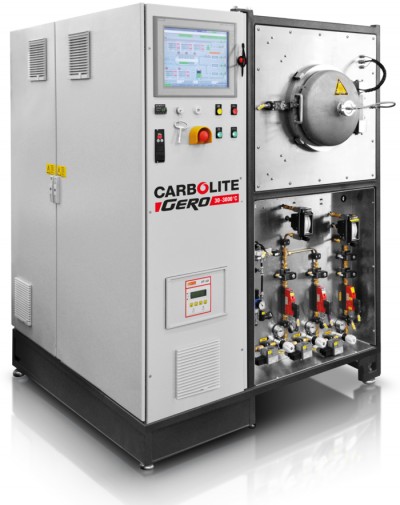

کوره مدل GLO 120/11-1G ساخت کمپانی Carbolite
GLO 120/11-1G
Volume (l) 120
Tmax vacuum (°C) 600
Tmax atmospheric pressure (°C) 600 / 900 / 1100
Dimensions:
External H x W x D (mm) 2100 x 1800 x 2000
Transport weight
Complete system (kg) 2000
Usable space
Ø x D (mm) 500 x 700
Thermal values
ΔT between 300 and 1100°C (K) according to DIN 17052 ± 5
Max. heat-up rate (K/min) 10
Cooling time (h) 8 - 10
Connecting values
Power (kW) 60
Voltage (V) 400 (3P)
Current (A) 3 x 180
Series fuse (A) 3 x 200
Vacuum (option)
Leakage rate - clean, cold and empty (mbar l/s) < 5x10-3
Vacuum range depending on the pumping unit rough, fine or high vacuum
Cooling water required
Flow (l/min) 1-3
Max. inlet temperature (°C) 23
Gas supply
Nitrogen or Argon flow, others on request (l/h) 200-2000
Controller
Manual operation Eurotherm with KP 300 panel
Automatic operation Siemens
