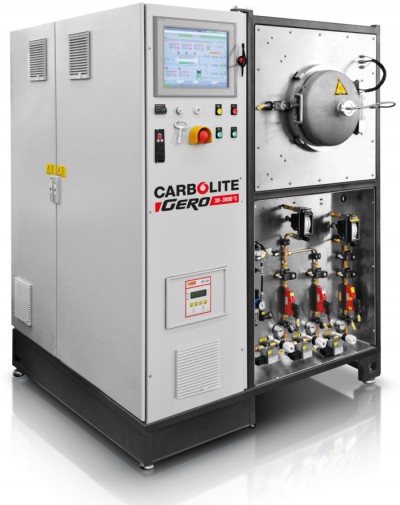

کوره مدل GLO 75/11-1G ساخت کمپانی Carbolite
GLO 75/11-1G
Volume (l) 75
Tmax vacuum (°C) 600
Tmax atmospheric pressure (°C) 600 / 900 / 1100
Dimensions:
External H x W x D (mm) 2000 x 1600 x 1800
Transport weight
Complete system (kg) 1500
Usable space
Ø x D (mm) 400 x 600
Thermal values
ΔT between 300 and 1100°C (K) according to DIN 17052 ± 3
Max. heat-up rate (K/min) 10
Cooling time (h) 7 - 9
Connecting values
Power (kW) 40
Voltage (V) 400 (3P)
Current (A) 3 x 110
Series fuse (A) 3 x 160
Vacuum (option)
Leakage rate - clean, cold and empty (mbar l/s) < 5x10-3
Vacuum range depending on the pumping unit rough, fine or high vacuum
Cooling water required
Flow (l/min) 1-3
Gas supply
Nitrogen or Argon flow, others on request (l/h) 200-2000
Controller
Manual operation Eurotherm with KP 300 panel
Automatic operation Siemens
Chamber furnace, metal insulation Model HTK 80 MO/16-1G
Chamber furnace, metal insulation Model HTK 25 MO/16-1G
