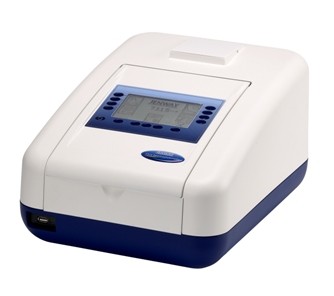

New 7315 UV/visible single beam spectrophotometer /731501

• Icon driven software
• Results and method saving to USB memory stick
• Autologging capabilities
• Press to read xenon lamp (7315)
• 3 year warranty including xenon lamp
• Extensive range of accessories available

The 7315 spectrophotometer uses icon driven software and has an improved navigation system for easy and intuitive usability. This spectrophotometer features measurement modes for absorbance, % transmittance, concentration, spectrum scanning, kinetics and quantitation.

 The 7315 UV/visible, scanning spectrophotometer is fitted with 10x10mm cuvette holder and is supplied with a pack of 100 disposable cuvettes, instruction manual, universal power supply, USB memory stick, PC software on CD ROM and interface cable.

Full product specification.



Parameter		7315
Wavelength Range		198 to 1000nm
Light source		Xenon lamp
Resolution		1nm
Accuracy		± 2nm
Repeatibility		± 0.5nm
Spectral bandwidth		5nm
Photometric Transmittance		0 to 199.9%
Photometric Absorbance		-0.300 to 2.500
Photometric Accuracy		± 1%T, ± 0.01Abs at 1.000 Absorbance
Photometric Resolution		0.1%T, 0.001A
Concentration Range		-300 to 9999
Concentration Resolution		selectable 1/ 0.1/ 0.01/ 0.001
Concentation Calibration		Blank with a single standard or factor
Concentration Units		no units, %, ppm, EBC, SRM, mEq/l, mEq, M, mM, µM, nM, U, U/l, U/ml, g/l, mg/l, µg/l, ng/l, g/dl, mg/dl, µg/dl, mg/ml, µg/ml, ng/ml, µg/ul, ng/ul, mol/l, mmol/l
Concentration Factor		0.001 to 10000
Concentration Standard		0.001 to 1000
Quantitation Range		-300 to 9999
Quantitation Resolution		selectable 1/ 0.1/ 0.01/ 0.001
Quantitation Calibration		Blank with up to 6 standards
Quantitation Curve fit algorithms		Quadratic, quadratic through zero, linear, linear through zero, interpolate
Kinetics Measurement time		2 to 9999 seconds
Kinetics Calibration		Blank with a single standard or factor
Kinetics Display		Graphical and concentration
Kinetics Analysis		Concentration, rate of change, initial and final absorbance/:%T
Kinetics Resolution		selectable 1/ 0.1/ 0.01/ 0.001
Spectrum Range		198 to 1000nm
Spectrum Scan interval		selectable 1, 2 or 5nm
Spectrum Analysis		Absorbance or transmittance and peak and valleys
GLP		Current time and date, user ID, instrument lock and method lock
Method storage		240
Results memory		Limited by attached mass storage device
Removable media		USB (supplied)
Outputs		USB, Analogue, RS232, Integral printer
Size (w x d x h)		275 x 400 x 220mm
Weight		6kg
