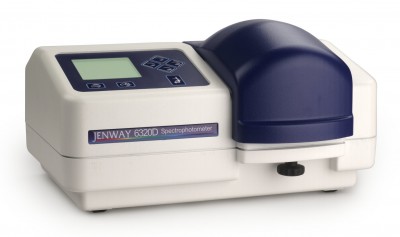

6320D Visible Spectrophotometer (230V/50Hz) /632501

• Wavelength range of 320 to 1000nm
• Absorbance, %T and concentration modes
• Multi-parameter display with wavelength and photometric readouts
• Wide range of sampling accessories
• Domed lid accepts tubes up to 105mm tall
• Very easy to use

The 6320D visible spectrophotometer is a high quality, low cost unit for spectroscopy applications in schools and colleges, as well as in QC and testing procedures for a wide variety of services and industries. The 6320D is based on the 6300 visible spectrophotometer platform and includes a domed lid which accepts taller tubes up to a height of 105mm.

The 6320D visible spectrophotometer is supplied with mains lead and dual cell holder (for 10mm square cuvettes and 12.7mm diameter tubes) (230V/50Hz)

Full product specification

Parameter	6320D
Wavelength range	320 to 1000nm
Wavelength resolution	1nm
Wavelength accuracy	±2nm
Spectral bandwidth	8nm
Transmittance	0 to 199.9%T
Absorbance	–0.300 to 1.999A
Accuracy	±1%T
Resolution	0.1%T, 0.001A
Stray light	<0.5%T
Noise	<1%
Stability	1%/h after 15 minutes
Concentration range	–300 to 1999
Concentration resolution	0.1 to 1
Units	ppm, mg/l, g/l, M, %, blank
Factor	0 to 199.9, 1000 to 9999
Light source	Tungsten halogen lamp
Outputs	Analogue and RS232
Power	<50W
Size (w x d x h)	365 x 272 x 160mm
Weight	6kg
