دستگاههای آنالیتیکال » WTW آلمان

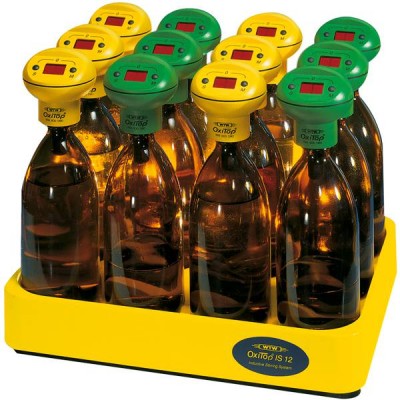

دستگاه اندازه گیری BOD مدل OxiTop ® IS ساخت کمپانی WTW
BOD self check measurement OxiTop ® IS
Simple handling without dilution series
Data security by built-in measured value memory
Suitabe for immediate use
Complete packages for 6 or 12 measuring points for routine measurements:
The BOD measurement with OxiTop® is based on pressure measurement in a closed system: The micro-organisms in the sample consume the oxygen and generate CO2 in the process. This is absorbed with NaOH. This will cause a vacuum pressure, which can be determined as a measured value in mg/l BOD.
The sample volume used regulates how much oxygen is available in order for full BOD to run. With different volumes, measuring ranges up to 4,000 mg/l BOD can be measured.
The OxiTop® heads (green and yellow to differentiate between infeed and output) have an AutoTemp function: If the sample temperature is still too cold, the start of the measurement is delayed automatically until a constant temperature is reached, but at least for 1 hour.
In addition to the automatic saving of 5 measured values (1 value per day), you can also manually read other measured values after these 5 days have elapsed, so that control values or measurements can be tracked over time (long-term).
0 ... 40 digits (display units)
equals after conversion with scaling factor 0 ... 40 / 80 / 200 / 400 / 800 / 2000 / 4000 mg/l BSB
Portable oxi-meter Oxi 3210 , Order-No.: 9774350
Portable Oxi Meter Oxi 3205-Set 1 in transport case with CellOx® 325 and accessories , Order-No.: 9774340
Thermoreactor CR 4200 ,Order-No.: 1P23
Thermoreactor CR 3200 , Order-No.: 1P22
Thermoreactor CR 2200 , Order-No.: 1P21
Portable turbidity meter Turb® 355 , Order-No.: 6902303
Turbo 550 Labor-Trübungsmessgerät # 600 100 , Order-No.: 7090752
Photometers pHotoFlex® pH , Order-No.: 9923625
Photometer,PhotoLab S6,with 6 interference filters , Order-No.: 9923631
Oxzgen meter inoLab® Oxi 7310 Set 4 unit incl. StirrOx® G and accessories , Order-No.: 9920110
