کوره ذوب مدل K 1/10 - K 4/13, KC 1/15 + KC 2/15 ساخت کمپانی Nabertherm

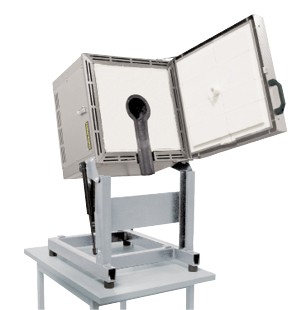

Melting Furnaces Model K 1/10 - K 4/13, KC 1/15 + KC 2/15

These compact melting furnaces for the melting of non-ferrous metals and alloys are one of a kind and have a number of technical advantages. Designed as tabletop models, they can be used for many laboratory applications. The practical counter balanced hinge with shock absorbers and the spout (not for KC) on the front of the furnace make exact dosing easy when pouring the melt. The furnaces are available for furnace chamber temperatures of 1000, 1300, or 1500 °C. This corresponds to melt temperatures of about 80-110 °C lower.

Tmax 1000 °C, 1300 °C, or 1500 °C, with melt temperature about 80 - 110 °C lower
Crucible sizes of 1, 2, or 4 liters
Crucible with integrated pouring spout of iso-graphite included with delivery
Spout (not for KC), mounted at the furnace for exact pouring
Compact bench-top design, simple emptying of crucible by tiltiing system with gas damper
Crucible for heating up of melting furnace insulated with a hinged lid, lid opened when pouring
Defined application within the constraints of the operating instructions

Additional equipment

Other crucible types available, e.g. steel
Design as bale-out furnace without tilting device, e.g. for lead melting
Over-temperature limiter for the furnace chamber with automatic reset to protect against overtemperature. The limit controller switches off the heating when the pre-set limit temperature has been reached and does not switch it on again until the temperature falls below the setting again.
Observation hole for melt

Model	Tmax	Crucible	Volume	Outer dimensions in mm			Connected	Electrical	Weight
	°C		in l	W	D	H	load kW	connection*	in kg
K 1/10	1000	A 6	1.0	520	680	660	3.0	1-phase	85
K 2/10	1000	A10	2.0	520	680	660	3.0	1-phase	90
K 4/10	1000	A25	4.0	570	755	705	3.6	1-phase	110

K 1/13²	1300	A 6	1.0	520	680	660	3.0	1-phase	120
K 2/13²	1300	A10	2.0	520	680	660	3.0	1-phase	125
K 4/13²	1300	A25	4.0	570	755	705	5.5	3-phase¹	170

KC 1/15³	1500	A6	1.0	580	630	580	10.5	3-phase	170
KC 2/15³	1500	A10	2.0	580	630	580	10.5	3-phase	170
