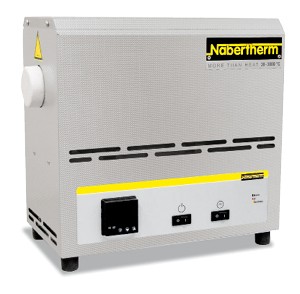

کوره با محفظه متراکم (لوله ای) مدل RD 30/200/11 - RD 30/200/13 ساخت کمپانی Nabertherm
The RD tube furnaces convince with their unbeatable price-performance ratio, very compact outer dimensions and their low weight. These all-rounders are equipped with a working tube which also serves as support for the heating wires. Thus, the working tube is part of the furnace heating which has the advantage that the furnaces achieve very high heat-up rates. The tube furnaces can be supplied for 1100 °C or 1300 °C. Both models are designed for horizontal application. If the customer requires protective gas atmosphere, a separate working tube incl. gas supply system 1, e.g. made of quartz glass, must be inserted in the working tube.
Tmax 1100 °C or 1300 °C
Housing made of sheets of textured stainless steel
Inner diameter of the tube: 30 mm, heated length: 200 mm
Working tube made of C 530 material including two fiber plugs as standard
Thermocouple type K (1100 °C) or type S (1300 °C)
Solid state relays provide for low-noise operation of the heating
Heating wires wound directly around the working tube resulting in very fast heat-up rates
Defined application within the constraints of the operating instructions
Additional equipment
Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
Gas supply system for non-flammable protective or reactive gas
| Model | Tmax | Outer dimensions in mm | Inner tube Ø | Heated | Length constant | Connected | Minutes | Electrical | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| °C1 | W | D | H | mm | length /mm | temperature +/- 5 K in mm1 | load kW | to Tmax2 | connection* | in kg | |
| RD 30/200/11 | 1100 | 350 | 200 | 350 | 30 | 200 | 65 | 1.5 | 20 | 1-phase | 12 |
| RD 30/200/13 | 1300 | 350 | 200 | 350 | 30 | 200 | 65 | 1.5 | 25 | 1-phase | 12 |
