کوره توزین شامل ترازو و نرم افزار برای اندازه گیری میزان احتراق مدل L 9/11/SW - LT 9/12/SW ساخت کمپانی Nabertherm
L 9/11/SW - LT 9/12/SW

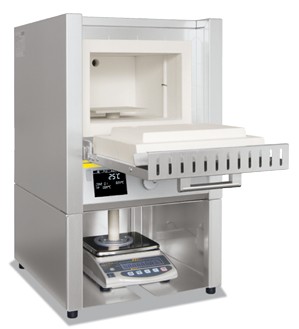

This weighing furnace with integrated precision scale and software, was designed especially for combustion loss determination in the laboratory. The determination of combustion loss is necessary, for instance, when analyzing sludges and household garbage, and is also used in a variety of technical processes for the evaluation of results. The difference between the initial total mass and the combustion residue is the combustion loss. During the process, the software included records both the temperature and the weight loss.
- Tmax 1100 °C or 1200 °C
- Heating from two sides
- Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace
- Insulation made of non-classified fiber material
- Housing made of sheets of textured stainless steel
- Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
- Adjustable working air inlet in the door
- Exhaust air outlet in rear wall of furnace
- Solid state relays provide for lownoise operation
- Delivery includes base, ceramic plunger with base plate in the furnace lining, precision scale and software package
- 4 scales available for different maximum weights and scaling ranges
- Software for documentation of the temperature curve and combustion loss using a PC
- Defined application within the constraints of the operating instructions
Additional equipment
- Chimney, chimney with fan or catalytic converter
- Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
Model Tmax Inner dimensions in mm Volume Outer dimensions in mm Connected Electrical Weight Minutes flap door °C w d h in l W D H load kW connection* in kg to Tmax2 L 9/11/SW 1100 230 240 170 9 480 550 800 3.0 1-phase 55 75 L 9/12/SW 1200 230 240 170 9 480 550 800 3.0 1-phase 55 90
Model Tmax Inner dimensions in mm Volume Outer dimensions in mm Connected Electrical Weight Minutes Lift door °C w d h in l W D H1 load kW connection* in kg to Tmax2 LT 9/11/SW 1100 230 240 170 9 480 550 800+290 3.0 1-phase 55 75 LT 9/12/SW 1200 230 240 170 9 480 550 800+290 3.0 1-phase 55 90
