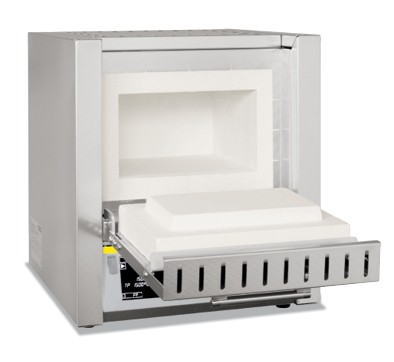

کوره بدون صدا مدل L, LT 9/11/SKM ساخت کمپانی Nabertherm
Muffle Furnaces with Embedded Heating Elements in the Ceramic Muffle
Model L, LT 9/11/SKM
We particularly recommend the muffle furnace L 9/11/SKM if your application involves aggressive substances. The furnace has a ceramic muffle with embedded heating from four sides. The muffle furnace thus combines a very good temperature uniformity with excellent protection of the heating elements from aggressive atmospheres. Another aspect is the smooth, nearly particle free muffle (furnace door made of fiber insulation), an important quality feature for some ashing processes.
- Tmax 1100 °C
- Muffle heated from four sides
- Furnace chamber with embedded ceramic muffle, high resistance to aggressive gasses and vapours
- Housing made of sheets of textured stainless steel
- Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
- Adjustable working air inlet in the door
- Exhaust air outlet in rear wall of furnace
- Solid state relays provide for lownoise operation
- Defined application within the constraints of the operating instructions
Additional equipment
- Chimney, chimney with fan or catalytic converter
- Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
- Protective gas connection to purge with non-flammable protective or reaction gases
- Manual or automation gas supply system
| Model | Tmax | Inner dimensions in mm | Volume | Outer dimensions in mm | Connected | Electrical | Weight | Minutes | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| °C | w | d | h | in l | W | D | H | load kW | connection* | in kg | to Tmax2 | |
| L 9/11/SKM | 1100 | 230 | 240 | 170 | 9 | 480 | 550 | 570 | 3.0 | 1-phase | 50 | 90 |
| LT 9/11/SKM | 1100 | 230 | 240 | 170 | 9 | 480 | 550 | 570+2901 | 3.0 | 1-phase | 50 | 90 |
