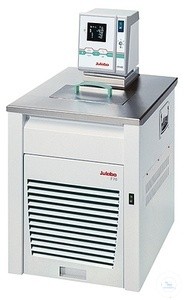

حمام سیرکولاتور سرمایشی مدل F81-ME کمپانی JULABO
Technical Data
| Order No. | 9162681 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model series | TopTech | ||||||||||||||
| Category | Ultra-Low Refrigerated-Heating Circulators | ||||||||||||||
| Working temperature range (°C) | -81 ... +100 | ||||||||||||||
| Temperature stability (°C) | ±0.02 | ||||||||||||||
| Setting / display resolution | 0.01 °C | ||||||||||||||
| Integrated programmer | 1x10 steps | ||||||||||||||
| Temperature Display | VFD | ||||||||||||||
| Heating capacity (kW) | 1.3 | ||||||||||||||
| Cooling capacity (Medium Ethanol) |
| ||||||||||||||
| Pump capacity flow rate (l/min) | 11-16 | ||||||||||||||
| Pump capacity flow pressure (bar) | 0.23-0.45 | ||||||||||||||
| Bath opening / bath depth (W x L / D cm) | 13 x 15 / 16 | ||||||||||||||
| Pump connections | M10x1 | ||||||||||||||
| Barbed fittings diameter (inner dia. / mm) | 8 / 10 | ||||||||||||||
| Filling volume (liters) | 6.5 | ||||||||||||||
| Refrigerant | R23, R404A | ||||||||||||||
| External Pt100 sensor connection | integrated | ||||||||||||||
| Digital interfaces | Optional Profibus | ||||||||||||||
| Ambient temperature | 5...40 °C | ||||||||||||||
| Dimensions W x L x H (cm) | 50 x 58 x 88 | ||||||||||||||
| Weight (kg) | 86 | ||||||||||||||
| Classification according to DIN12876-1 | Classification III (FL) | ||||||||||||||
| Included with each unit | 2 barbed fittings suitable for tubing 8 and 10 mm inner dia. (pump connections M10x1 female) | ||||||||||||||
| Cooling of compressor | Air |
