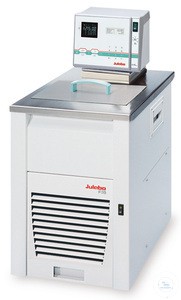

حمام سیرکولاتور مدل FP35-HL کمپانی JULABO
Technical Data
| Order No. | 9312618 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model series | HighTech | ||||||||||
| Category | Refrigerated - Heating Circulators | ||||||||||
| Working temperature range (°C) | -35 ... +150 | ||||||||||
| Temperature control | ICC | ||||||||||
| Temperature stability (°C) | ±0.01 | ||||||||||
| Setting / display resolution | 0.01 °C | ||||||||||
| Integrated programmer | 6x60 steps | ||||||||||
| Temperature Display | VFD , LCD | ||||||||||
| Heating capacity (kW) | 2 | ||||||||||
| Cooling capacity (Medium Ethanol) |
| ||||||||||
| Pump capacity flow rate (l/min) | 22-26 | ||||||||||
| Pump capacity flow pressure (bar) | 0.4-0.7 | ||||||||||
| Pump capacity flow suction (bar) | 0.2-0.4 | ||||||||||
| Bath opening / bath depth (W x L / D cm) | 18 x 12 / -- | ||||||||||
| Pump connections | M16x1 | ||||||||||
| Barbed fittings diameter (inner dia. / mm) | 8 / 12 | ||||||||||
| Filling volume (liters) | 2.5 | ||||||||||
| Refrigerant | R134a | ||||||||||
| External Pt100 sensor connection | integrated | ||||||||||
| Digital interfaces | RS232 RS485 Optional Profibus | ||||||||||
| Ambient temperature | 5...40 °C | ||||||||||
| Dimensions W x L x H (cm) | 31 x 42 x 66 | ||||||||||
| Weight (kg) | 38 | ||||||||||
| Classification according to DIN12876-1 | Classification III (FL) | ||||||||||
| Included with each unit | 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 female). | ||||||||||
| Cooling of compressor | Air | ||||||||||
| Power requirement V / Hz / A | 230/50/12 Additional voltage versions available |
