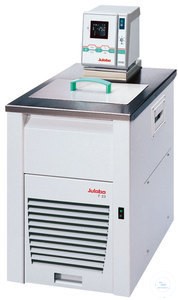

سیرکولاتور سرمایشی/ گرمایشی مدل F34-MA کمپانی JULABO
Technical Data
| Order No. | 9153634 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model series | TopTech | ||||||||||
| Category | Refrigerated - Heating Circulators | ||||||||||
| Working temperature range (°C) | -30 ... +150 | ||||||||||
| Temperature control | PID | ||||||||||
| Temperature stability (°C) | ±0.02 | ||||||||||
| Setting / display resolution | 0.01 (-9.99...99.99) / 0.1 °C | ||||||||||
| Temperature Display | LED | ||||||||||
| Heating capacity (kW) | 2 | ||||||||||
| Cooling capacity (Medium Ethanol) |
| ||||||||||
| Pump capacity flow rate (l/min) | 11-16 | ||||||||||
| Pump capacity flow pressure (bar) | 0.23-0.45 | ||||||||||
| Bath opening / bath depth (W x L / D cm) | 24 x 30 / 15 | ||||||||||
| Pump connections | M10x1 | ||||||||||
| Barbed fittings diameter (inner dia. / mm) | 8 / 10 | ||||||||||
| Filling volume (liters) | 20 | ||||||||||
| Refrigerant | R134a | ||||||||||
| Digital interfaces | RS232 Optional Profibus | ||||||||||
| Ambient temperature | 5...40 °C | ||||||||||
| Dimensions W x L x H (cm) | 38 x 58 x 62 | ||||||||||
| Weight (kg) | 42 | ||||||||||
| Classification according to DIN12876-1 | Classification III (FL) | ||||||||||
| Included with each unit | 2 barbed fittings suitable for tubing 8 and 10 mm inner dia. (pump connections M10x1 female) | ||||||||||
| Cooling of compressor | Air | ||||||||||
| Power requirement V / Hz / A | 230/50/12 Additional voltage versions available |
