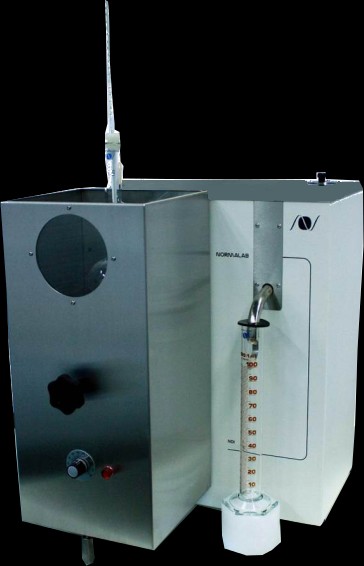

دستگاه دستی تقطیر ساخت کمپانی NORMALAB
ndi basic
Manual instrument
Standards
ASTM D86, ASTM D850, ASTM D1078, ISO 3405, IP 123, IP 195, DIN 51571, NFM 07002
Scope
Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure.
MAIN CHARACTERSTICS
Front view distillation apparatus
Receiver on the right
Manual heating regulation
Manual condenser bath temperature regulation
Visual monitoring of distillate volume
Heating element 1000 W
SCOPE OF DELIVERY
NDI BASIC delivered ready for use with :
REF 20348 Ceran board with hole ø 50 mm
REF 20349 Ceran board with hole ø 100 mm
REF 11494 ASTM thermometer 7C
REF 11495 ASTM thermometer 8C
REF 40009 Cleaning cable for condenser
REF 12609EC 5ml graduated cylinder
REF 19425 One graduated receiver (100ml)
REF 24019 One distillation flask (125ml)
REF 60514 Bag of Pumice stone -(20g)
REF 40050 Pack of 50 silicone stoppers for thermometer side
REF 40049 Pack of 50 silicone stoppers for condenser side
OPTIONAL ACCESSORIES
REF 941251 Glass cooling bath (2 l) for receiver temperature control
REF 20347 Ceran Board hole ø 38 mm
REF 40078 Karanape board hole 38 mm, type B
REF 40079 Karanape board, hole 32 mm, type A
REF 27581 Ceran board hole ø 25 mm
CONSUMABLES
REF 19422 200 ml distillation flask (ASTM D 1078)
REF 19425 100 ml graduated receiver, type B (D 86)
REF 24019 125 ml distillation flask, type B (D 86)
REF 60514 Bag of Pumice stone -(20g)
REF 12609EC 5ml graduated cylinder
ORDERING INFORMATION
REF 941228 NDI BASIC For use on AC 230 V, 50 Hz - 6 A
(W) 500x (D) 450x (H) 470 mm (±23 kg)
