دستگاه فول اتوماتیک فرآورده های نفتی ساخت کمپانی NORMALAB

Automated atmospheric distillation of petroleum products

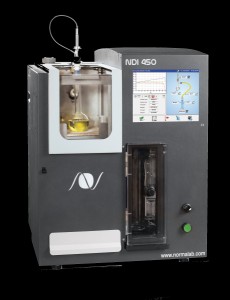

NDI 450 is the 5th generation of automated distillation developped by Normalab

Standards

ASTM D86, ASTM D850, ASTM D1078, ISO 3405, IP 123, IP 195, DIN 51751, JIS K2254, GOST B

Scope

This test method covers the atmospheric distillation of petroleum products. Natural, motor and aviation gasolines, aviation turbine fuels, special boiling point spirits, naphtas, white spirit, kerosene, gas oils, distillate fuel oils.

MAIN CHARACTERISTICS

Temperature measurement range: ambient to 450°C

Temperature accuracy: 0.05°C

Low voltage heating element (850W)

Automatic positioning of heating element

Quick cooling of heater by fan

Condenser temperature: 0 to 60°C

Receiver compartment temperature: 0 to 60°C

Level follower accuracy: 0.1 ml with resolution of 0.05ml

Built-in Peltier Cooling System

Ready for Biodiesels analysi

Integrated colour touch screen display (10,4 inch)

Windows® based software

Preprogrammed with Standard Methods

User programmable methods Automatic

Barometric pressure correction

Equipment ready to use as per ASTM D86 and related methods (Optional kit for ASTM D850, D1078)

Additional Test Method : 10% Distillation residue with 100ml sample which can be used for Carbon Residue Measurement according to ASTM D189, D524 & D4530.

SCOPE OF DELIVERY

NDI 450 operable through integrated touch screen and Windows® based software. Equipment with built in fire extinguishing system and external N2 bottle fitted with manometer for pressure control. Scope of delivery NDI 450 delivered ready to use for D86 and related standards:

REF 240191 25 ml distillation flask

REF 26111 100 ml receiver

REF 60507 38 mm heating plate

REF 60508 50 mm heating plates

REF 12609EC 5 ml residue receiver

REF 60510 Pt 100 probe

Pt 100 probe centering device

REF 60509 Dry point Thermocouple

REF 60514 Bag of Pumice (20g )

REF 60513 Condenser cleaning cable

REF 60515 3 Stoppers: condenser stopper

REF 40065 flask probe stopper D86
