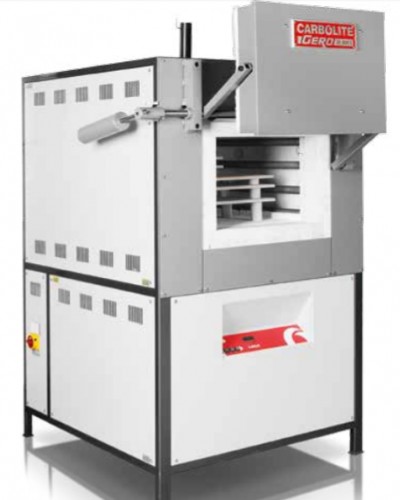

High Temperature Industrial Oven Model HT4/28

Standard Features

• 400°C, 500°C or 600°C maximum operating temperatures
• 28, 95, 220 or 350 litre capacity
• Carbolite 301 controller, with single ramp to set-point & process timer
• Robust construction
• Excellent performance & reliability
• Stainless steel liner
• Stainless steel perforated shelves

Options (specify these at time of order)

• Over-temperature protection (recommended to protect valuable contents & for unattended operation)
• A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
• Additional shelves
• Viewing window (not compatible with stoving and curing option)
• Stoving & curing options for extraction of small volumes of volatile solvents (not compatible with viewing window option)

HT4/28

Max temp (°C)	400
Min temp (°C)	Ambient +60
Volume (litres)	28

Temp stability (°C)	±0.5
Temp uniformity (°C)	±5.0
Heat-up time (mins)	60
Recovery time (mins)	10
Dimensions: Internal H x W x D (mm)	305 x 305 x 305
Dimensions: External H x W x D (mm)	880 x 675 x 885
Shelves fitted / accepted	2 / 2
Shelf loading each / total (kg)	10 / 20
Max power (W)	1000
